I. Application Scenarios: Covering Diverse Farming Environments

Applicable Locations: Large-scale farms, livestock breeding centers, family farms, veterinary service stations, mobile clinics, and remote pastoral areas

Core Applications:

Early Pregnancy Diagnosis: Precisely identifies the detection window based on the species' physiological cycle, quickly confirming pregnancy status 21-40 days after mating.

Batch Pregnancy Screening: Batch management of sows/cattle/ewes, rapid identification and re-mating of non-pregnant individuals.

Fetal Development Monitoring: Real-time tracking of fetal number, fetal heart rate activity, and placental blood flow perfusion.

Reproductive Performance Assessment: Scientific judgment of ovarian luteal function, estrus cycle tracking, and mating timing.

Mobile Medical Services: Silicone shockproof body + 18650 high-capacity battery (≥4 hours of battery life), adaptable to complex environments in the wild/pastoral areas.

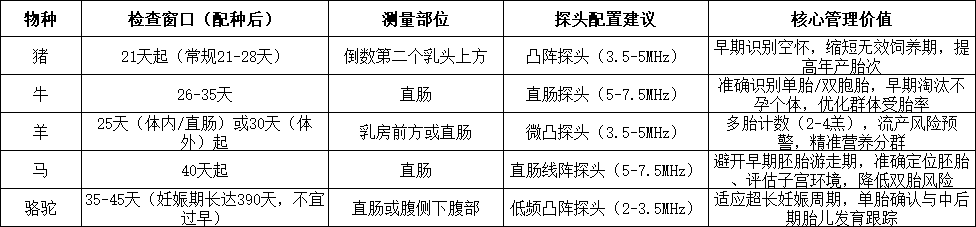

II. Species-Specific Pregnancy Screening Solutions: Precisely adaptable to various large animals.

Note: The detection window period refers to the earliest clinical reference value where the gestational sac/fetal heart rate can be clearly identified. Actual image quality is affected by animal condition, bladder fullness, operating techniques, and equipment frequency.

III. Core Technological Advantages: A Perfect Combination of Portability and Professionalism

1. Ultra-High Resolution Imaging: Equipped with a high-density array probe and self-developed algorithms, it offers high resolution, clearly presenting the gestational sac wall, embryonic bud, and the fine structure of the placenta.

2. Ultra-High Frame Rate Dynamic Capture: Tracks fetal heartbeats without ghosting, effectively suppressing animal respiratory/intestinal peristalsis artifacts.

3. Professional Veterinary Measurement Toolkit: Includes pre-set measurements for cattle, horses, pigs, sheep, camels, and other species, allowing one-click access to quantitative parameters such as gestational sac diameter, fetal heart rate, and backfat thickness.

4. All-Weather Battery Life: 18650 industrial-grade lithium battery, providing ≥4 hours of battery life, supports USB fast charging, meeting the needs of batch inspections throughout the day on farms.

5. Flexible Multi-Probe Configuration: Optional convex array, rectal, backfat, micro-convex, and linear array probes are available, covering full-scale imaging from the superficial reproductive tract to the deep abdominal cavity.

IV. Data Management and Workflow Optimization

Large-Capacity Local Storage: ≥128MB video memory, supporting BMP/JPG/PNG/TIFF/DICOM multi-format image archiving.

One-Click Export and Traceability: Direct USB connection for exporting WMV/MP4 examination videos, quickly establishing individual reproductive electronic records, supporting cross-year trend analysis.

Pre-stored Optimized Parameters: Built-in standardized gain/focus/dynamic range presets for different species and gestation stages, reducing manual adjustments and improving single-head examination efficiency by over 30%.

High-Definition Outdoor Visibility: 5.6-inch high-brightness LCD screen + explosion-proof and anti-glare glass, ensuring clear image details even in strong light conditions.

V. Economic Benefits and Management Value

Direct Economic Benefits:

Early identification of non-pregnant cows saves approximately 1500-2000 RMB in ineffective feeding costs per cow per year.

Accurate timing of re-mating increases group conception rate by 10-15%.

Regular fetal heart rate/placental monitoring provides early warning of abortion or fetal growth retardation, reducing perinatal losses.

Group feeding based on pregnancy test results optimizes feed conversion rate and reduces nutrient waste.

Management Benefits:

Data-driven breeding dashboard: Complete records of data throughout the entire breeding-pregnancy-partum cycle, supporting calculations of core indicators such as PSY/MSY.

Standardized Operating Procedures (SOPs): Pre-stored parameters reduce reliance on individual veterinarian experience, facilitating quick onboarding for new staff.

Mobile service extension: Portable design supports multi-site inspections, increasing the service radius and response speed of veterinary stations.

Compliant quality traceability: Export in DICOM standard format, meeting animal disease prevention and control and breeding stock traceability requirements.

VI. Service Support and Implementation Guarantee

Promay Animal Medical provides:

✅ Standardized Operation Training: Specialized guidance on large animal restraint techniques, probe holding angles, and standard section interpretation.

✅ Scenario-Based Probe Selection: Providing combined solutions for convex array/rectal/backfat sections based on breeding scale and species structure.

✅ Nationwide Service Network: Authorized service points in 31 provinces and municipalities, 24/7 technical response, remote debugging and firmware upgrades.

✅ Full Lifecycle Maintenance: 1-year warranty on the entire machine, 6-month warranty on the probe, lifetime technical support and parameter calibration.

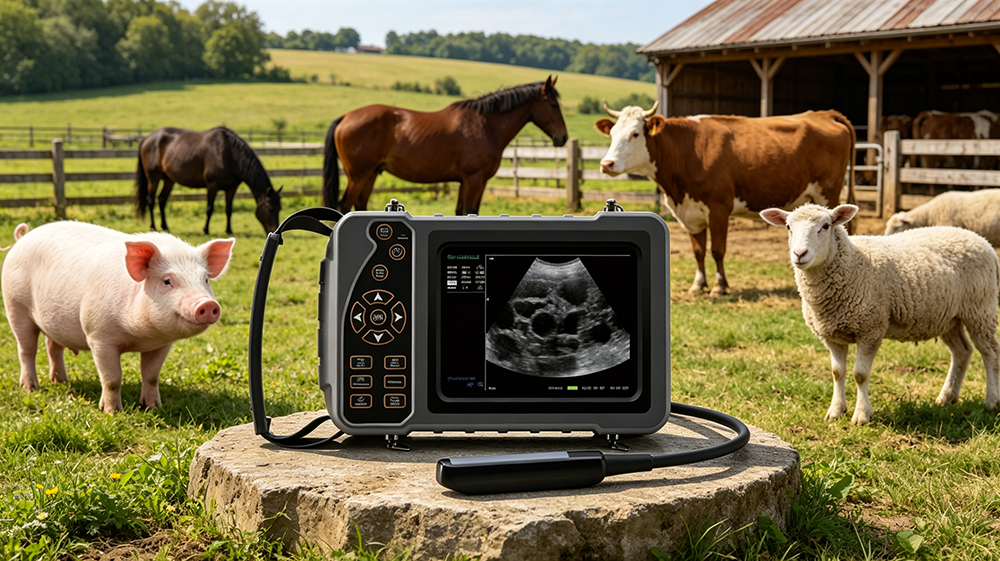

The Periodmed PU-VP051A handheld veterinary ultrasound machine, based on clinical cycle timelines and emphasizing portability and efficiency, provides farms, breeding institutions, and ranches with a scientifically reliable pregnancy examination tool. Through early and accurate diagnosis, standardized data management, and mobile service extensions, it helps breeding enterprises achieve refined reproductive management and cost reduction and efficiency improvement.
